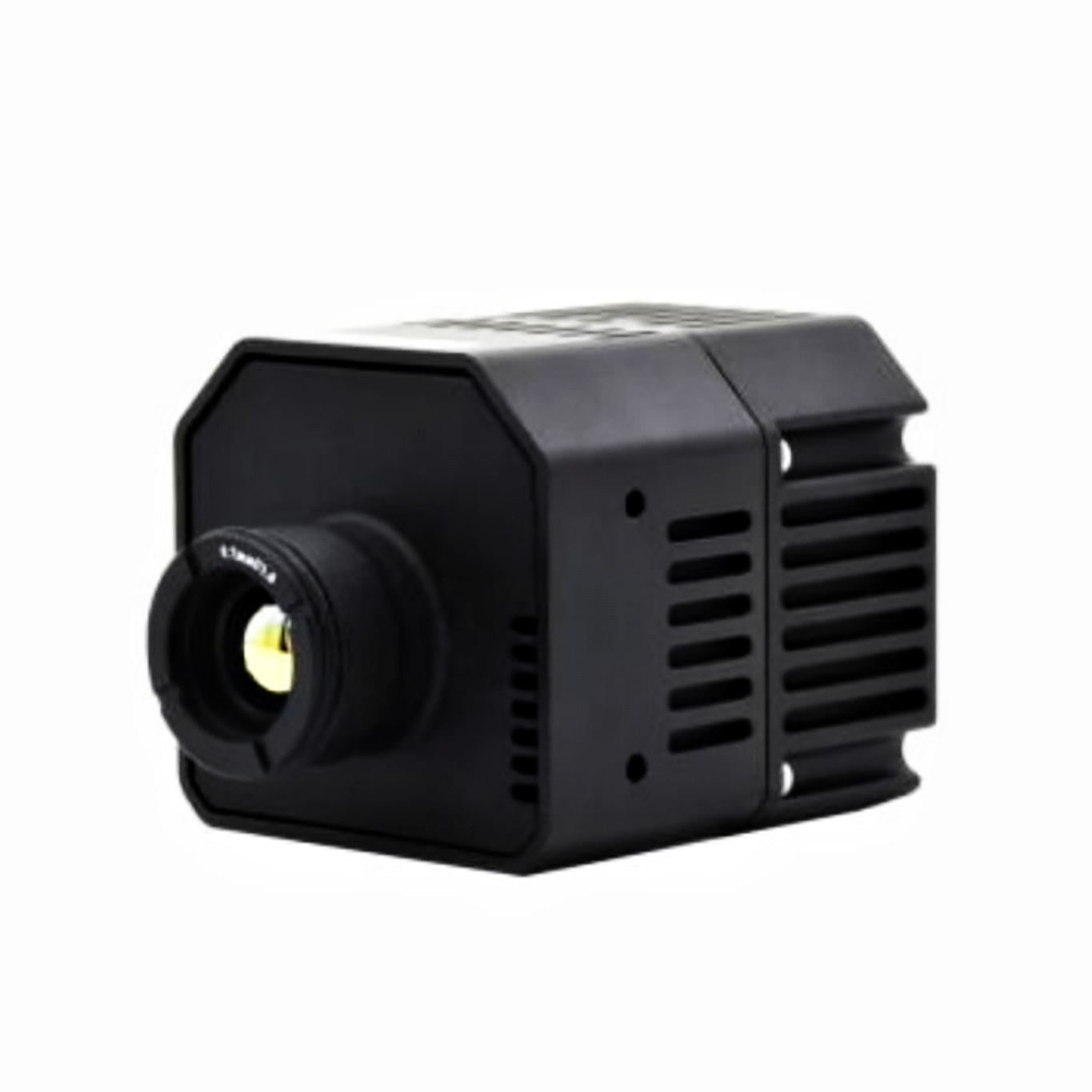

AT31F/AT61F ， fixed-focus online thermal imaging cameras . Built with uncooled VOx infrared detectors, they support real-time temperature monitoring, video output, and I/O alarm. Compact, easy to install, and ultra-low power consumption, they are widely used in power inspection, industrial monitoring, computer room temperature measurement, fire prevention warning, etc.
Power Equipment Monitoring
Computer Room
Industrial Production
Fire Warning
Equipment Status
Energy Storage & PV Inspection
| Model | Resolution | Lens Focal Length |
|---|---|---|
| AT31F | 384×288 | 4/6.2/9.7/13/19/25/35/50mm |
| AT61F | 640×512 | 4.1/5.8/9.1/13/19/25/35/55mm |
| Item | AT31F | AT61F |
|---|---|---|
| Resolution | 384×288 | 640×512 |
| Detector | VOx Uncooled | VOx Uncooled |
| Spectrum | 8–14μm | 8–14μm |
| NETD | <50mK | <50mK |
| Temperature Range | -20~150℃ / 0~550℃ | -20~150℃ / 0~550℃ |
| Accuracy | ±2℃ or ±2% | ±2℃ or ±2% |
| Power | 9–26VDC, ≤3W | 9–26VDC, ≤3W |
| Ethernet | Gigabit RJ45 | Gigabit RJ45 |
| Protocols | ONVIF / Modbus TCP / GB28181 | ONVIF / Modbus TCP / GB28181 |
| Dimensions | 46.5×48×83mm | 46.5×48×83mm |
| Weight | <150g | <150g |
| Operating Temp | -20℃~+60℃ | -20℃~+60℃ |
