15μm Pitch MCT MWIR IDDCA, MWIR Infrared Detector, MCT Mid-Wave Infrared Sensor
15μm pitch MCT MWIR IDDCA

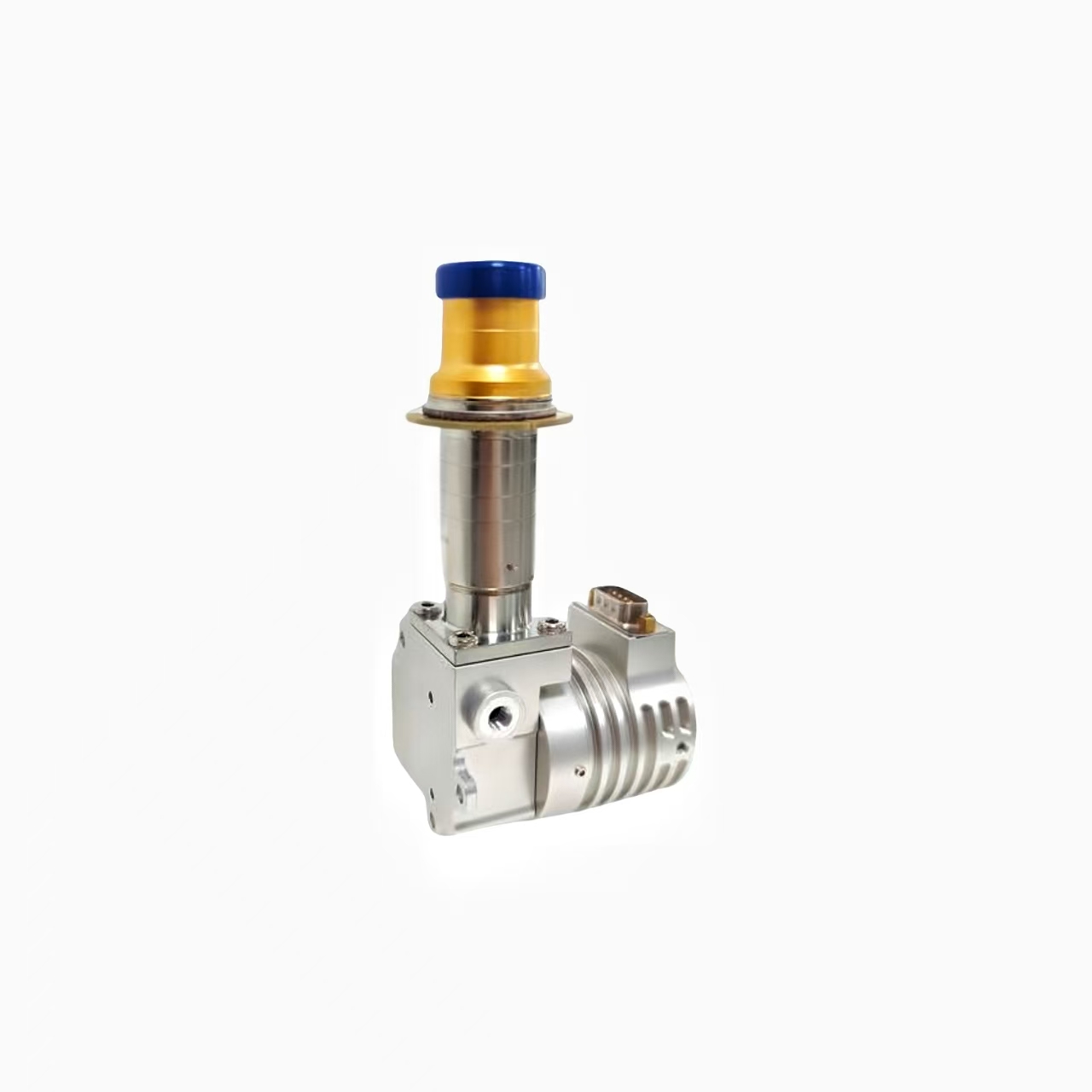

The YM615S4S3 is a high-performance cooled mid-wave infrared (MWIR) detector with a 15μm pixel pitch and 640×512 array. Built on MCT (Mercury Cadmium Telluride) material, it features strong vibration and impact resistance, ultra-high reliability, and a 3.7μm~4.8μm spectral response with ≤18mK NETD. Equipped with a general opto-mechatronic interface, it supports seamless system integration, with mass production ensuring excellent consistency for industrial, aerospace, and surveillance thermal imaging applications.
| Array size | 640×512 | Temperature fall time | ≤6min@23℃ |
| Pixel size | 15μm | Cooling power consumption | ≤13.5W@23℃ |
| spectral response range | 3.7μm～4.8μm | Steady-state power consumption | ≤5.5W@23℃ |
| response inhomogeneity | ≤6% | Working temperature | -40℃～70℃ |
| F count | f/2; f/4 | Size （mm） | L142×H70×W58.5 |
| effective pixel rate | ≥99.8% | Weight | ≤570g |
| NETD | ≤18mK |
