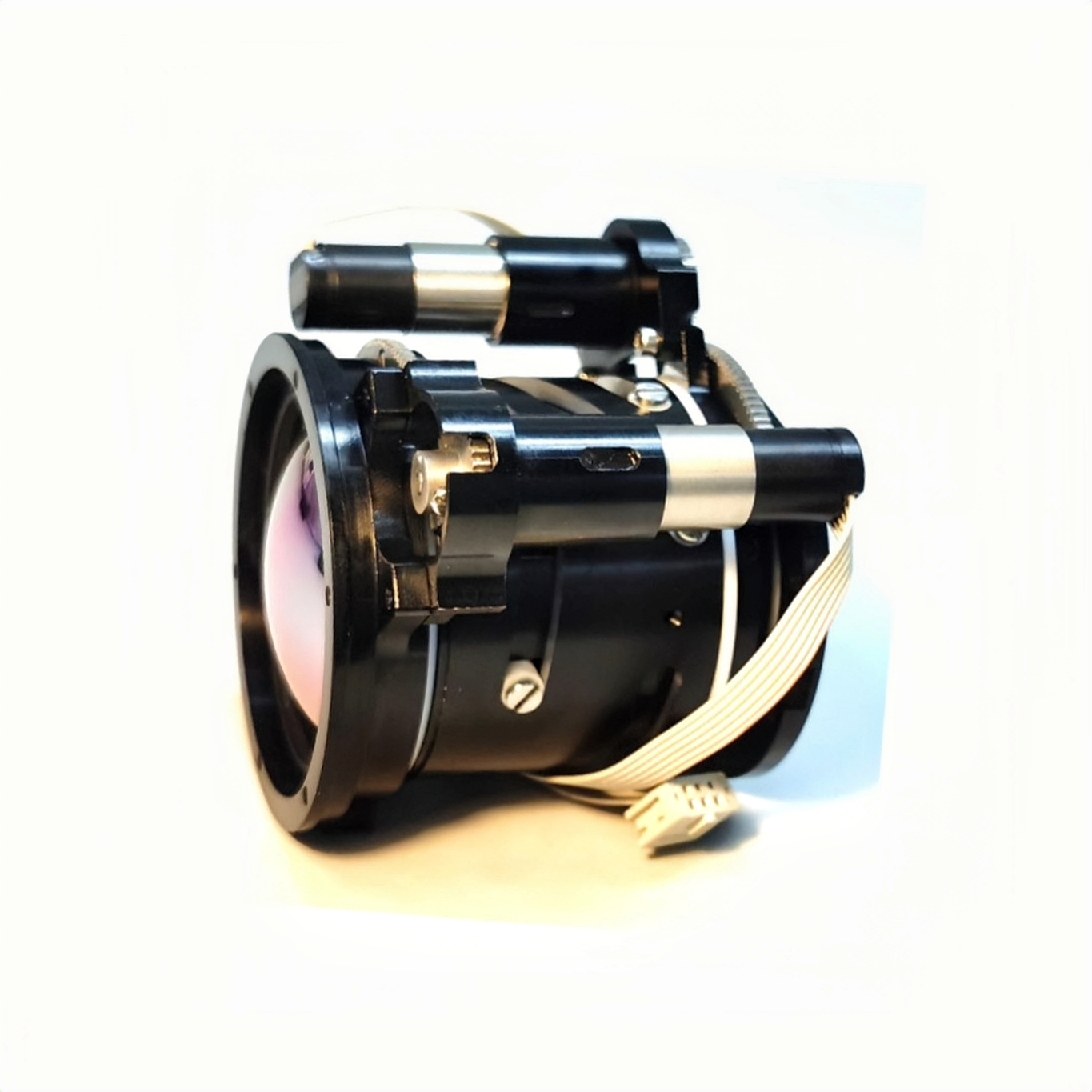

The MIRF5.5-15.5 is a lightweight, high-performance motorized mid-wave infrared (MWIR) zoom lens designed for 3.5~5μm infrared imaging systems. With a zoom range of 18mm~280mm, a constant F/5.5 aperture, and high-transmission optics, it balances wide-angle monitoring and long-range detail capture. Its ultra-compact, lightweight design makes it ideal for UAV, vehicle-mounted, and miniaturized device applications, widely used in security, industrial inspection, and infrared reconnaissance.
| OPTICS | |
| Focal Distance | 18mm～280mm |
| F/# | 5.5 |
| Wavelength Coverage | 3.5~5μm |
| Mean Transmissivity | ≥86% |
| Sensor Type | 640×512 15μm |
| Angle Of Field | 24.08°×29.86° (18mm) / 1.56°×1.96° (280mm) |
| MACHINERY | |
| Focus Type | Motor-Driven |
| Focus Range | 10m~∞ |
| Outline Dimension | 72.1×80×88mm |
| Post-Work Distance | 22.4mm |
| Weight | 550g |
| ENVIRONMENT | |
| Working Temperature | -45℃~+60℃ |
| Storage Temperature | -55℃~+70℃ |
