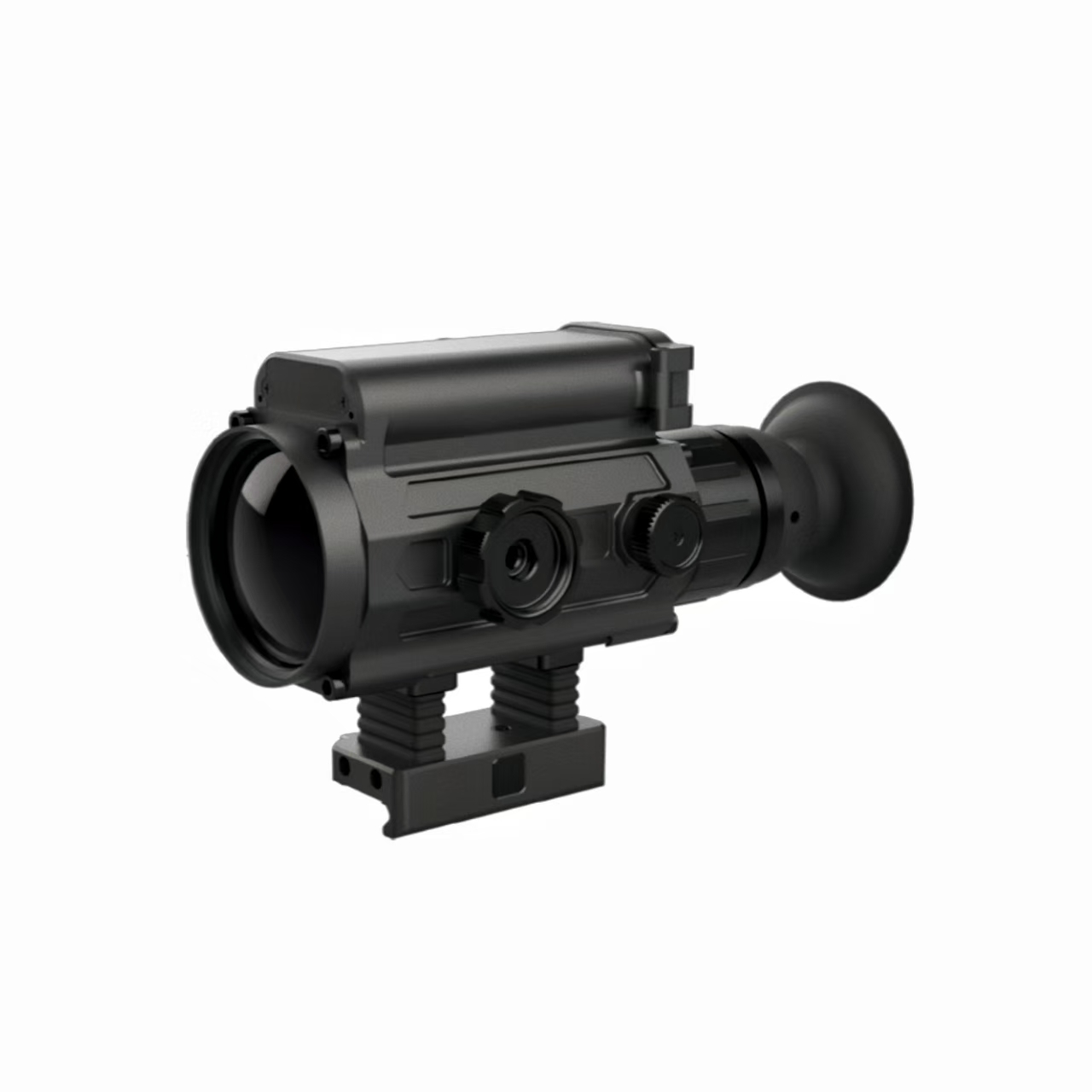

Tyke-M Series Middle-type Thermal Scope is equipped with a 384×288/640×512 detector and matched with a 45mm lens. It can be used alone or in combination with a daylight scope, providing excellent thermal images.
Tyke-M Series is small and simple, waterproof and dustproof, and has excellent impact resistance. It can work in any weather, terrain, and meteorological conditions, which is reliable and functional.
| Item | Mid Type | Heavy Type | ||
|---|---|---|---|---|
| Tyke-M3 | Tyke-M6 | Tyke-H6 | ||
| Module | 384×288 | 640×512 | ||
| Spectral Band | 8~14μm | |||
| Pixel Pitch | 17μm | 12μm | ||
| Focal length | 45mm | 90mm | ||
| FOV | 8.3°×6.2° | 9.8°×7.8° | 4.9°×3.9° | |
| Screen | 0.38°OLED 800×600 | 0.5°OLED 800×600 | ||
| Eyepiece Diopter | -5~+3 | -5~+5 | ||
| Eye Relief | 30mm | 43mm | ||
| Power Supply | 2×18650 | |||
| Weight (with battery) | ≤0.7kg | ≤0.9kg | ||
| Battery Life | ≥20h | |||
| Dimensions (With EyeCup and Lens Hood) |
181×73.5×105mm | 215×100.5×105mm | ||
| Interface | External Power Supply/Analog Video (PAL)/RS232/WIFI | |||
| Operating Temperature | -40°C~+55°C | |||
| Encapsulation | IP67 | |||
| Reliability | Shock 300g/4Hz | Shock 800g/10Hz | ||
| HumanTarget 1.7m×0.5m |
Identification | 400 m | 600 m | 1100 m |
| Recognition | 750 m | 1200 m | 2000 m | |
| Section | 3000 m | 4000 m | 6000 m | |
| VehicleTarget 2.3m×2.3m |
Identification | 500 m | 800 m | 1500 m |
| Recognition | 1000 m | 1800 m | 3000 m | |
| Section | 4000 m | 6000 m | 8000 m | |
