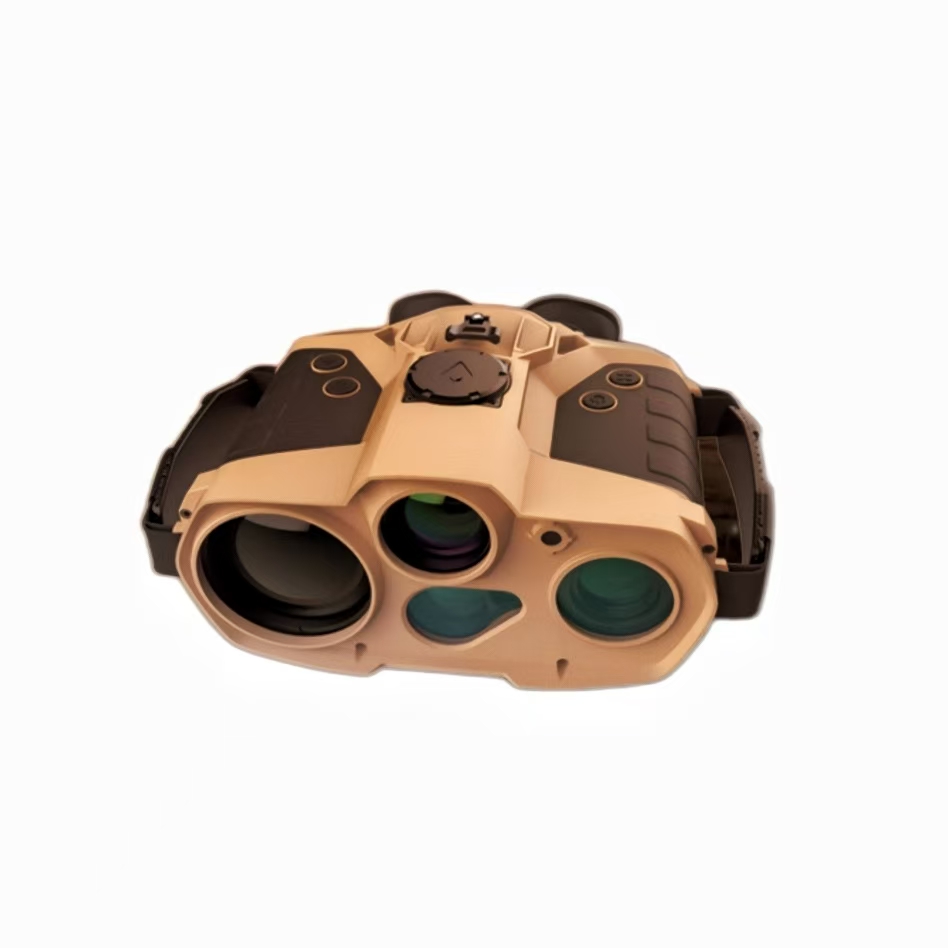

Tom-B Five Optical Channels Multi-function Binoculars is a small intelligent observation device integrating infrared, low-light, visible light and laser. It has built-in location module, digital magnetic compass, and laser range- finder. With image fusion function, it can be used for day and night observa- tion and target search. The images and videos can be taken, and the information can be uploaded in time. It is comfortable and portable to use.
| Thermal Channel | Resolution | 640×512, 12μm |
|---|---|---|
| Spectral Band | 8-14μm | |
| FOV | 6.1°×4.8° | |
| Laser Pointer | Wavelength | 830nm |
| Security Level | Class IIIA | |
| Color Day Channel | Resolution | 4.6 Megapixels |
| FOV | 4.6°×3.7° | |
| Display | 1280×1024 OLED | |
| Low Light Level Channel | Resolution | 750×600 |
| FOV | 6.8°×5.5° | |
| Storage | 10000 JPG & 4h AVI | |
| Laser Rangefinder | Eye Safe | 1535nm |
| Max Measuring Range | >6km | |
| Measuring Accuracy | 2m | |
| Ocular Lens Diopter | -4~+4 | |
| Location Module | Location Mode | BD+GPS |
| Horizontal Location Accuracy (CEP) | 5m | |
| Elevation Location Accuracy (PE) | 10m | |
| Weight | ≤2.1kg (With Battery) | |
| Digital Magnetic Compass | Azimuth Measurement Range | 0°~360° |
| Azimuth Measurement Accuracy | 0.5° (RMS) | |
| Pitch Angle Measurement Range | -90°~+90° | |
| Pitch Angle Measurement Accuracy | 0.4° (RMS) | |
| Inclination Angle Measurement Range | -180°~+180° | |
| Inclination Angle Measurement Accuracy | 0.5° (RMS) | |
| Operating Time | ≥8h | |
| Dimension | 198×210×105 mm | |
| Interface | External Power Supply / USB / PAL / RS232 / HDMI / WIFI | |
| Operating Temperature | -40℃~+55℃ | |
| Encapsulation | IP67 | |
