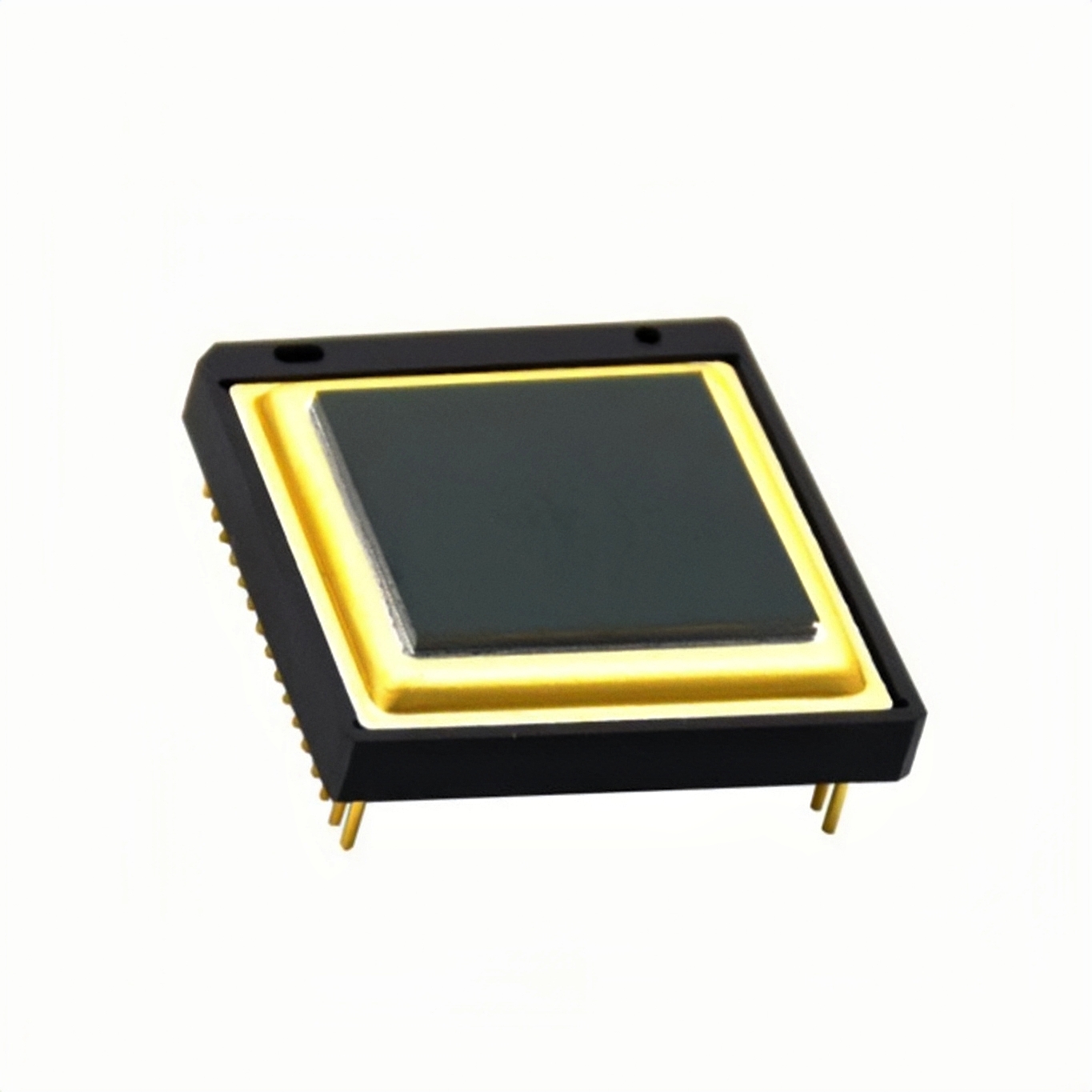

The RTD3122C non-cooled infrared focal plane detector is designed for long-wave infrared (LWIR) imaging. It features a vanadium oxide-based radiometric pyrometer focal plane array (FPA) chip integrated with a CMOS readout integrated circuit (ROIC) and packaged in a high-vacuum environment. The RTD3122C detector’s specifications and features are detailed in Table 1.
| Project | Metric |
|---|---|
| transducer technology | Vanadium oxide micro radiometer |
| Spectral response range | 8–14 μm |
| Pixel Center Distance | 12 μm |
| Array size | 384 × 288 (excluding dummy pixels) |
| Operability | ≥ 99.5% |
| Noise equivalent temperature difference (NETD) | < 40 mK (@f/1.0, 50 Hz, 300 K) |
| thermal time constant | < 10 ms |
| frame frequency | ≤ 60 Hz |
| power dissipation | < 110 mW (@ 50 Hz, 25 ℃) |
| Digital output bits | 14 bits |
| Wide Dynamic Range | Supports temperature measurement from -40 to 600°C (@f/1.0) |
| Readout mode | Read line by line |
| Mirror | Mirror X and Y directions |
| Non-uniformity correction | Non-uniformity correction of 6-bit chip |
| operating temperature range | -40°C ~ +85°C |
| Encapsulation format | 32-Pin ceramic vacuum packaging |
| Package size | 22 × 22 × 4.58 mm³ (excluding pin dimensions) |
| Packaging weight | ≤ 5 g |
