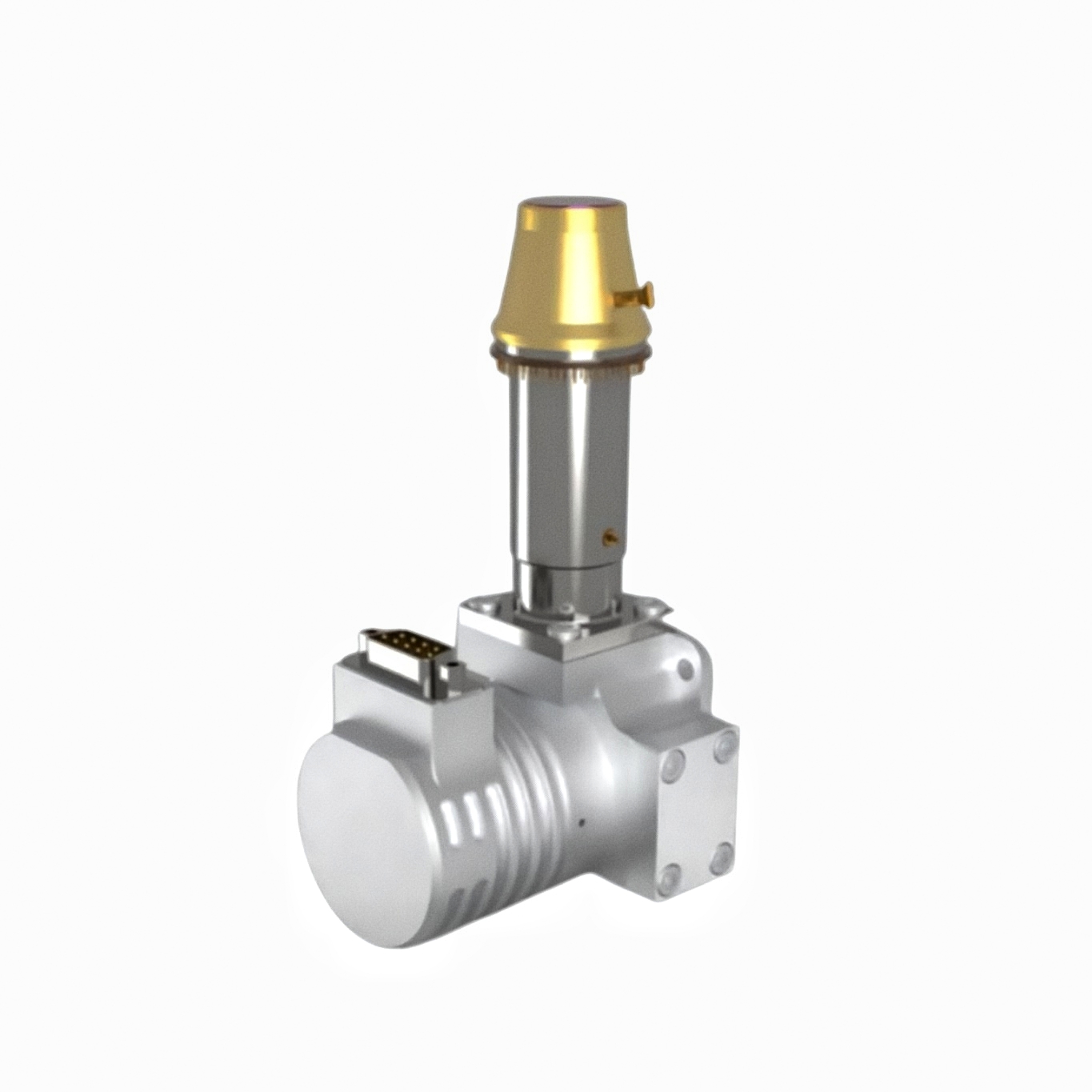

The 640×512 medium-wave infrared detector converts infrared radiation in the 3.7μm-4.8μm band into voltage signals, featuring high performance, high resolution, low power consumption, compact size, and lightweight design. It serves as the core sensing component in infrared imaging subsystems for night vision systems, thermal imaging observation, forward-looking early warning, weapon guidance, air defense surveillance, and infrared recognition.
| Order number | Project | Indicator |
|---|---|---|
| 1 | Array specifications | 640×512 |
| 2 | Distance from the center of the element | 15μm |
| 3 | spectral response （μm） | 3.7μm±0.2μm ~ 4.8μm +0.2μm |
| 4 | Output amplitude | 1.65V（IWR pattern） 2.1V（ITR pattern） |
| 5 | Blind rate | ≤0.2% |
| 6 | Response rate heterogeneity | ≤6% |
| 7 | average NETD | ≤18mk (F/2.5, 50% well fill, test conditions: T1=20°C, T2=35°C) |
| 8 | Refrigeration startup time | ≤6min @ 23℃±2℃ ≤8min @ 70℃±2℃ |
| 9 | Refrigeration unit power consumption | When refrigerated: ≤13.5W @ 23℃±2℃ Stable operating power: ≤5.5W @ 23℃±2℃At 70℃±2℃, cooling capacity ≤15W Stable operation: ≤7W @ 70℃±2℃ |
| 10 | weight | ≤570g |
