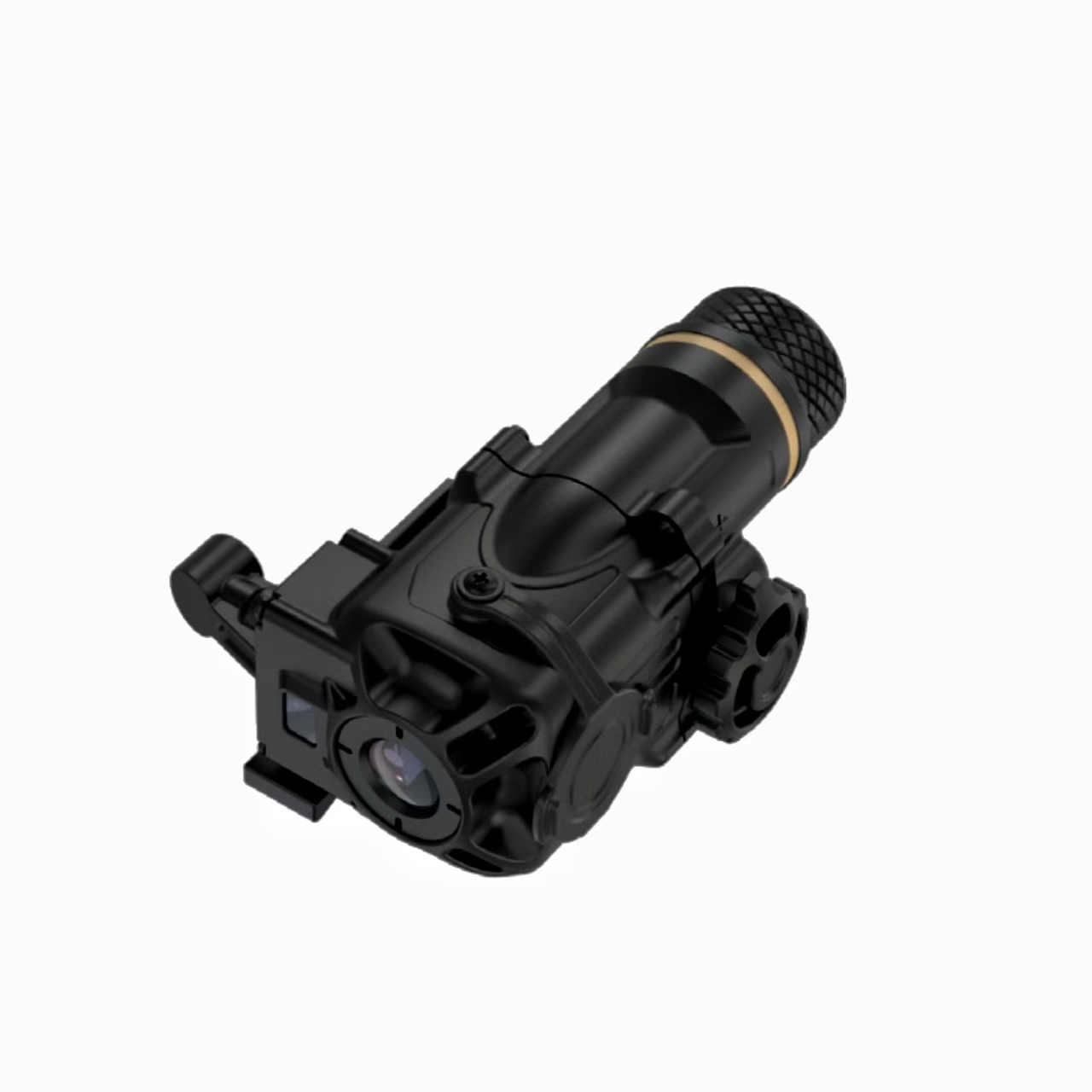

Jerry-C Clip-on Thermal Imager is developed for the harsh environment that restricting the use of I² and CCD night vision devices. As a thermal imaging enhancing attachment, it quickly upgrades your existing device with the clip-on fusion function and multiple imaging modes. Jerry-C can improve the user’s night vision awareness ability and ensure the absolute tactical advan- tage of prioritizing the identification of potential targets.
| Specifications | ||||
| Model | C5 | C2 | CE5 | CE2 |
| Infrared Specifications | ||||
| Resolution | 640×512 | 384×288 | 640×512 | 384×288 |
| Pixel Pitch | 12μm | |||
| Spectral Band | 8~14μm | |||
| Optical Specifications | ||||
| Lens Focal Length | f 11.52mm | |||
| FOV | φ30.5° | φ20° | φ30.5° | φ20° |
| Functions | ||||
| Display Mode | White Hot / Highlight / Outline | |||
| Display Functions | Normally On / Breathing | |||
| Brightness Adjustment | Support | |||
| Auto Brightness | Support | |||
| Shutter Correction | Support | |||
| Contrast Adjustment | Support | |||
| Threshold Adjustment | Support | |||
| Menu Rollover | — | |||
| Chinese & English | Support | |||
| Interfaces | ||||
| Data | RS232 | |||
| Video | PAL | |||
| Power Supply Mode | 17335 / 18650 | External Power (3~5.5V) | ||
| Environmental Adaption | ||||
| Operating Temperature | -40℃ ~ +60℃ | |||
| IP Encapsulation | IP67 | |||
| Weight | 110g | 78g | — | — |
